cnc small hole edm department
Lock Wire Holes
Drilling Thru 1 - Wall

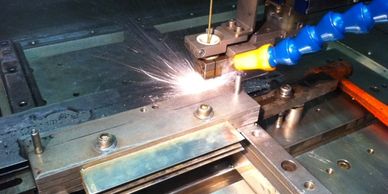

Wire EDM Starter Holes

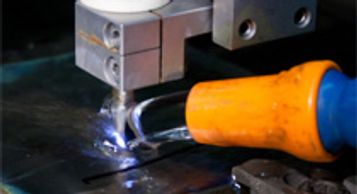

Our Small Hole EDM Machines can drill holes as small as .010" through any conductive metals.
Wire EDM Starter Holes
Drilling Thru 1 - Wall
Wire EDM Starter Holes
We can drill holes in material as thin as .0001" thick, and as small as .010" diameter.
Drilling Thru 1 - Wall
Drilling Thru 1 - Wall
Deep Hole Manifold Drilling
Drilling 166 holes as small as .012" diameter to meet an internal feature in this Bronze Injector.
Deep Hole Manifold Drilling
Deep Hole Manifold Drilling
Deep Hole Manifold Drilling

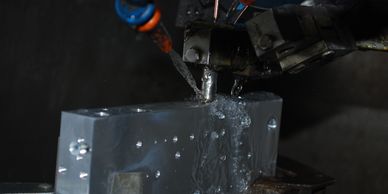

Small Hole EDM's are the perfect answer to those Deep holes, that may cross other holes in a manifold!
Finish Holes
Deep Hole Manifold Drilling
Finish Holes
Hole Tolerances of +/-.001" can be held in holes up to 9" deep!
Micro Holes
Deep Hole Manifold Drilling
Finish Holes
These holes are .013" Diameter with a +/-.0005" tolerance!
